The warning lights and indicators on the instrument cluster and center panel inform the driver of the status of the vehicle’s various systems.

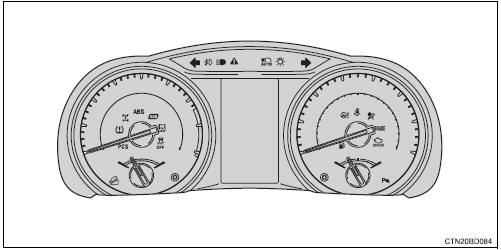

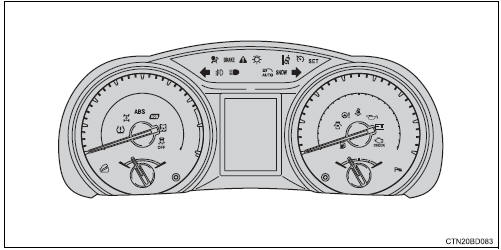

For the purpose of explanation, the following illustration displays all warning lights and indicators illuminated.
The units used on the meters and some indicators may differ depending on the target region.
Center stop lamp ASSY
REPLACEMENT
HINT:
Installation is in the reverse order of removal.
1. REMOVE BACK WINDOW PANEL TRIM UPPER (SEE PAGE 75-20 )
2. REMOVE CENTER STOP LAMP SOCKET & WIRE
(a) Disconnect the connector, and remove the center stop lamp socket & wire.
3. REMOVE CENTER STOP LAMP ASSY
(a) Rem ...
