Adjustment procedure

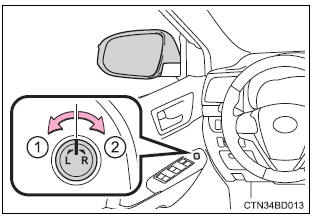

To select a mirror to adjust, turn the switch.

Left
Right

Toyota Highlander. Adjustment procedure

To adjust the mirror, move the switch.

Up
right
down
left

Toyota Highlander. Adjustment procedure

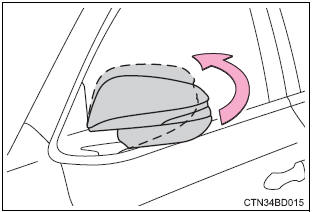

Folding the mirrors

Push the mirror back in the direction of the vehicle’s rear.

Toyota Highlander. Folding the mirrors

Mirror angle can be adjusted when

Vehicles without a smart key system the engine switch is in the "acc" or "on" position.
vehicles with a smart key system the engine switch is in accessory or ignition on mode.

When the mirrors are fogged up (vehicles with outside rear view mirror defoggers)

The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers.

(ƒZƒn430)

Automatic adjustment of the mirror angle (if equipped)

A desired mirror face angle can be entered to memory and recalled automatically by the driving position memory.

Warning

Important points while driving

Observe the following precautions while driving.

Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.

Do not adjust the mirrors while driving.
Do not drive with the mirrors folded.
Both the driver and passenger side mirrors must be extended and properly adjusted before driving.

When the mirror defoggers are operating (vehicles with outside rear view mirror defoggers)

Do not touch the rear view mirror surfaces, as they can become very hot and burn you.
