Toyota Highlander Owners Manual: Inside rear view mirror
The rear view mirror’s position can be adjusted to enable sufficient confirmation of the rear view.

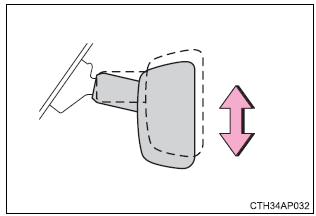

Adjusting the height of rear view mirror
The height of the rear view mirror can be adjusted to suit your driving posture.
Adjust the height of the rear view mirror by moving it up and down.
Anti-glare function

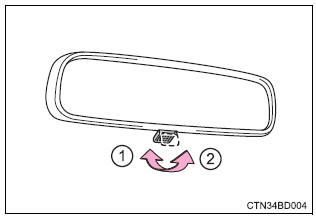

- Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced by operating the lever.
- Normal position
- Anti-glare position
- Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles behind, the reflected light is automatically reduced.
Changing automatic anti-glare function mode
On/off

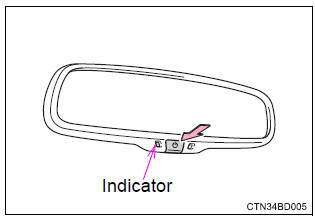

Type a:

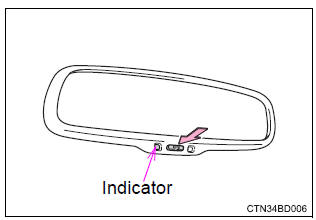

Type b:
When the automatic anti-glare function is in on mode, the indicator illuminates.
The function will set to on mode each time the engine switch is turned to ignition on mode.
Pressing the button turns the function to off mode. (The indicator also turns off.)
To prevent sensor error (vehicles with an auto anti-glare inside rear view mirror)
To ensure that the sensors operate properly, do not touch or cover them.
 Warning
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in death or serious injury. |
