Toyota Highlander Owners Manual: Locking and unlocking the back door

Toyota Highlander Owners Manual / Operation of each component / Opening, closing and locking the doors / Back door / Locking and unlocking the back door

Door lock switch
Entry function (vehicles with a smart key system)
Wireless remote control
Key

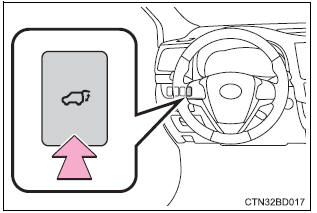

Opening/closing the back door from inside the vehicle (vehicles with a power back door)

Press and hold the switch to open or close the back door, when the back door is unlocked.

Pressing the switch while the back door is opening/closing stops the operation.

To operate the back door again, press and hold the switch. The back door will then move in the opposite direction.

Toyota Highlander. Opening/closing the back door from inside the vehicle

Back door

The back door can be locked/unlocked and opened/closed by the following procedures. ...

Opening the back door from outside the vehicle

Back door opener Vehicles without a power back door Raise the back door while pressing up the back door opener switch. Vehicles with a power back door When the back door is unlock ...
