Screen description
The rear view monitor system screen will be displayed if the shift lever is shifted to r while the engine switch is in “on” position.

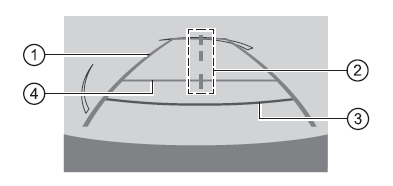

- Vehicle width guide lines the line indicates a guide path when the vehicle is being backed straight up.The displayed width is wider than the actual vehicle width.
- Vehicle center guide lines these lines indicate the estimated vehicle center on the ground.
- Distance guide line the line shows points approximately 1.5 Ft. (0.5 M) (red) from the center of the edge of the bumper.
- Distance guide line
the line shows distance behind the vehicle, a point approximately 3 ft.
(1 M) (blue) from the edge of the bumper.
Rear view monitor
system
Audio system with "apps" button
Refer to the "navigation and multimedia system owner's manual".
Audio system with "car" button
The r ...
Rear view monitor system precautions
Area displayed on screen
The rear view monitor system
displays an image of the view
from the bumper of the rear
area of the vehicle.
To adjust the image on the rear
view monitor system screen. ...
