Toyota Highlander Owners Manual: Summary of function

Toyota Highlander Owners Manual / Driving / Using the driving support systems / Lda (lane departure alert) / Summary of function

While driving on a road that has lane markers, this system recognizes the lane markers using a camera as a sensor to alert the driver when the vehicle deviates from its lane.

If the system judges that the vehicle has deviated from its lane, it alerts the driver using a buzzer and indications on the multi-information display.

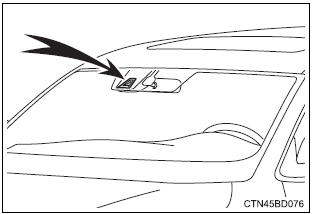

Camera sensor

Toyota Highlander. Camera sensor
