Toyota Highlander Owners Manual: Steering wheel audio switches
Some audio features can be controlled using the switches on the steering wheel.
Operation may differ depending on the type of audio system or navigation system. For details, refer to the manual provided with the audio system or navigation system.

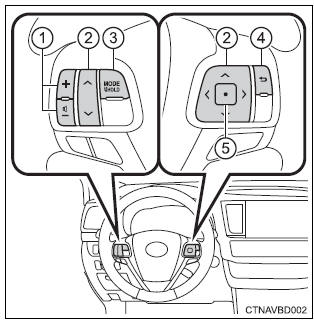

Operating the audio system using the steering wheel switches
- Volume switch
- increases/decreases volume
- press and hold: continuously increases/decreases volume
- Cursor switch ("
" and "
")
- selects (radio stations/radio presets/tracks/files/songs)
- press and hold: fast up/ down (radio stations)
- fast up/down (tracks/files)
Cursor switch ("
" and "
")
- seek up/down (radio station)
- press and hold: continuously seek up/down (radio station)
- press and hold: fast forward/rewind (tracks/files/songs)
- Mode/hold” switch
- changes audio source
- press and hold this switch to mute or pause the current operation to cancel the mute or pause, press and hold.
- Back switch
- returns to the previous screen
- Enter switch
- displays the preset/list screen
- selects items
 Warning
Exercise care when operating the audio switches on the steering wheel. |
Audio system
Operations such as listening to audio, using the hands-free
phone, confirming vehicle information and changing audio system
settings are started by using the following buttons.
Audio system operati ...
Aux port/usb port
Connect an ipod, usb memory device or portable audio player
to the aux port/usb port as indicated below. Select “ipod”,
“usb”, “aux” or “a/v” on the audio source selection screen
an ...
