Toyota Highlander Owners Manual: Outside temperature display
The temperature display shows temperatures within the range of -40°F (-40°C) to 122°F (50°C).

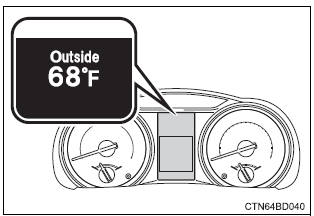

- Vehicles with monochrome display

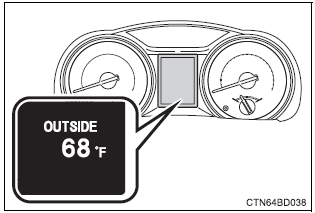

- Vehicles with color display
The outside temperature is displayed when
- Vehicles without a smart key system the engine switch is in the "on" position.
- vehicles with a smart key system the engine switch is in ignition on mode.
Display
In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.
- When the vehicle is stopped, or moving at low speeds (less than 15 mph [25 km/h]).
- When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
When the outside temperature display flashes
- Vehicles with monochrome display if the outside temperature is 37°F (3°C) or less, the temperature display flashes 10 times, and then illuminates.
- vehicles with color display if the outside temperature is 37°F (3¢xc) or less, the ice warning indicator
Flashes 10 times,
and then illuminates.
When “--” or “e” is displayed
The system may be malfunctioning. Take your vehicle to your toyota dealer.
Clock
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
The clock is displayed when
Vehicles without a smart key system
the engine switch is in the &q ...
Power outlets
The power outlet can be used for the following components:
12 v: accessories that run on less than 10 a
120 vac: accessories that use less than 100 w
12 V
Front
Open the lid.
Console ...
