Toyota Highlander Owners Manual: Opening and closing procedures

Toyota Highlander Owners Manual / Operation of each component / Opening and closing the windows / Power windows / Opening and closing procedures

The power windows can be opened and closed using the switches.

Operating the switch moves the windows as follows:

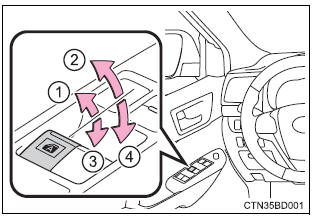

Models available with one touch opening/closing on the front side windows

closing
one-touch closing (front side windows only)*
opening
one-touch opening (front side windows only)*

*: to stop the window partway, operate the switch in the opposite direction.

Toyota Highlander. Opening and closing procedures

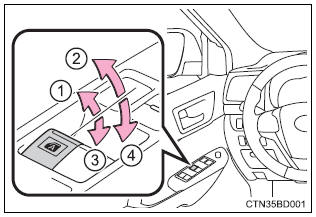

Models available with one touch opening/closing on all side windows

closing
one-touch closing*
opening
one-touch opening*

*: to stop the window partway, operate the switch in the opposite direction.

Toyota Highlander. Opening and closing procedures

Window lock switch

Press the switch to lock the passenger window switches. Use this switch to prevent children from accidentally opening or closing a passenger window. Models available with one touch opening/c ...
