Toyota Highlander Service Manual: LH headlamp ASSY

Inspection

1. HEADLAMP DIMMER SWITCH ASSY (a) Inspect light control switch.  Measure the resistance according to the value(s) in the table below. Standard: (b) Inspect headlamp dimmer swi ...

Overhaul

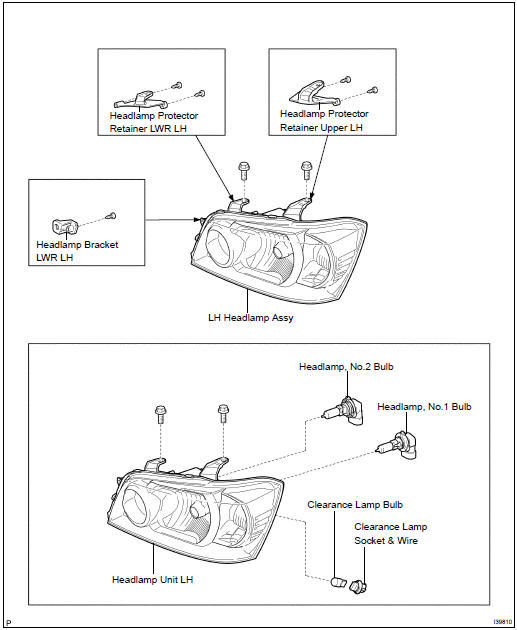

HINT: COMPONENTS: See page 65-9 Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side. Installation is in the reverse order of removal. 1. R ...
