Toyota Highlander Owners Manual: Installation with latch system

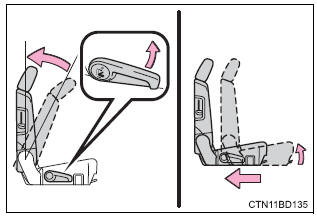

- Fold the seatback while pulling
the lever. Return the seatback
and secure it at the 1st lock
position (most upright position).
Move the seat as far back as possible.
If your child restraint system interferes with a head restraint and cannot be installed properly, install the child restraint system after removing the head restraint.
- Widen the gap between the seat cushion and seatback slightly.

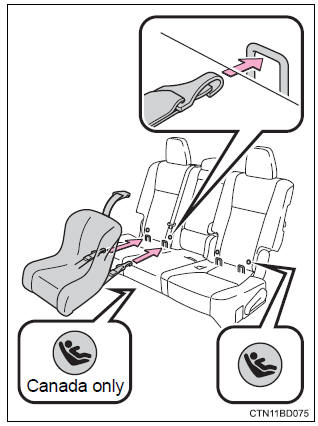

- Type a
- Latch the hooks of the lower
straps onto the latch
anchors.
If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.
For owners in canada: the symbol on a child restraint system indicates the presence of a lower connector system.

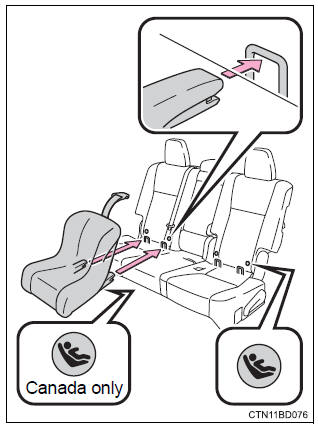

- Type b
- Latch the buckles onto the
latch anchors.
If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.
For owners in canada: the symbol on a child restraint system indicates the presence of a lower connector system.
