Toyota Highlander Service Manual: Components

Toyota Highlander Service Manual / Cooling / Radiator ASSY (3MZ-FE) / Components

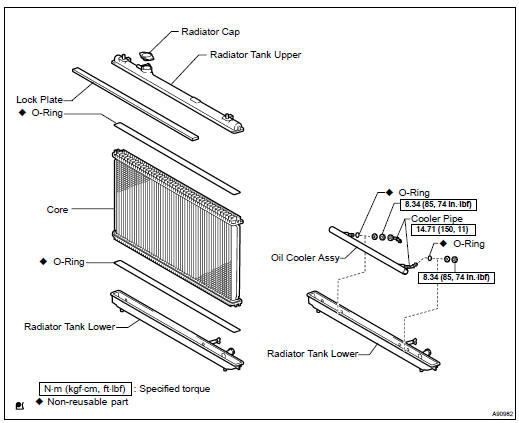

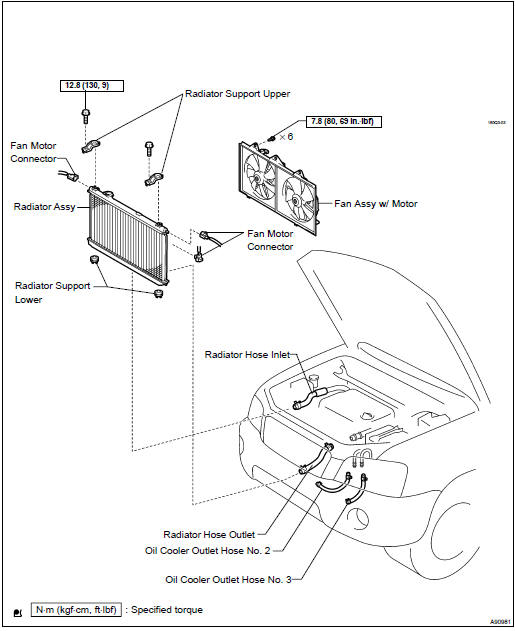

Components
