REPLACEMENT

HINT:

COMPONENTS: See page 67-2
Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY (SEE PAGE 71-10 )

HINT: Refer to the procedures up to "REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/ PASSENGER AIRBAG ASSY".

2. REMOVE ANTENNA CORD SUB-ASSY NO.2

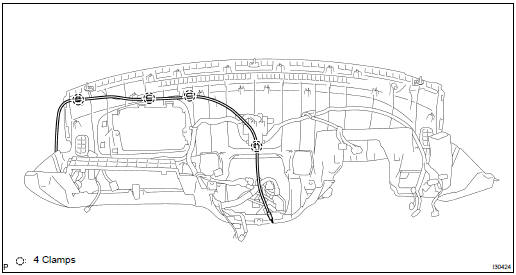

(a) Remove the 4 clamps and antenna cord sub-assy.

REMOVE ANTENNA CORD SUB-ASSY NO.2

3. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY (SEE PAGE 71-10 )

HINT: Refer to the procedures from "INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/ PASSENGER AIRBAG ASSY".
