Toyota Highlander Owners Manual: Activating the automatic high beam system
Toyota Highlander Owners Manual / Driving / Operating the lights and
wipers / Automatic high beam / Activating the automatic high beam system

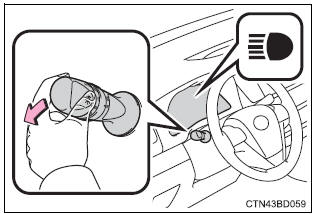

- Push the lever away from you
with the headlight switch in the
or
position.

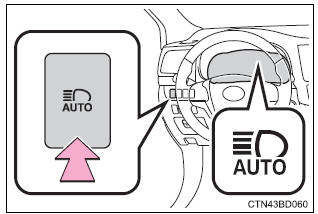

- Press the automatic high beam switch.
The automatic high beam indicator will come on when the headlights are turned on automatically to indicate that the system is active.
Automatic high beam
The automatic high beam uses an in-vehicle camera sensor to
assess the brightness of streetlights, the lights of oncoming and
preceding vehicles, etc., And automatically turns the high beam
on or o ...
High beam automatic turning on or off conditions
When all of the following conditions are met, the high beam will be
automatically turned on (after approximately 1 second):
vehicle speed is above approximately 21 mph (34 km/h).
Th ...
More about Toyota Highlander:
Transmission valve body ASSY (U241E/U140F)
REPLACEMENT
1. REMOVE ENGINE UNDER COVER NO.1
2. DRAIN AUTOMATIC TRANSAXLE FLUID
(a) Remove the drain plug, gasket and drain ATF.
(b) Install a new gasket and drain plug.
Torque: 49 NVm (500 kgfVcm, 36 ftVlbf)
3. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSY
(a) Remove the 18 bolts, oil p ...
