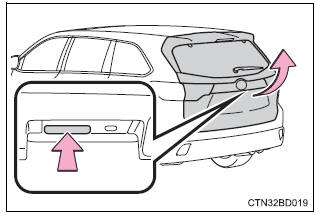

Back door opener
Raise the back door while pressing up the back door opener switch.
When the back door is unlocked: press the back door opener switch.
When the back door is locked (vehicles with a smart key system): while carrying the electronic key on your person, press and hold the back door opener switch.
Pressing the switch while the back door is opening/closing stops the operation.

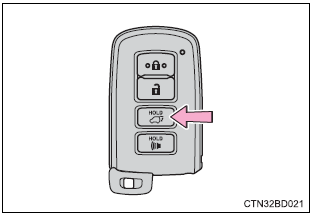

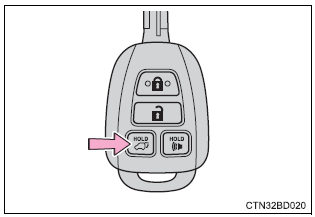

Wireless remote control (vehicles with a power back door)
Opens and closes the power back door (press and hold) pressing the button while the back door is opening/closing stops the operation.
To operate the back door again, press and hold the button. The back door will then move in the opposite direction.
Opens and closes the power back door (press and hold) pressing the button while the back door is opening/closing stops the operation.
To operate the back door again, press and hold the button. The back door will then move in the opposite direction.
Camshaft position sensor (2AZ-FE)
REPLACEMENT
HINT:
A bolt without a torque specification is shown in the standard bolt chart (see
page 03-2 ).
1. REMOVE AIR CLEANER ASSY (See page 14-24 )
2. REMOVE CAMSHAFT POSITION SENSOR
(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.
3. INSTALL CAMSHAFT POSITION ...
