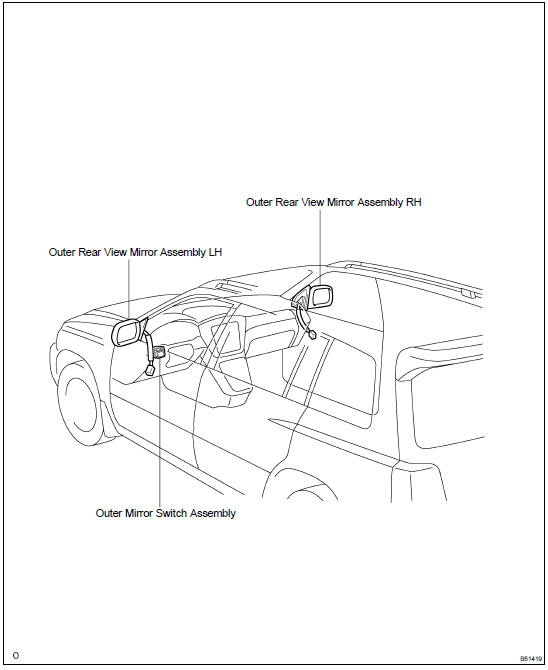

LOCATION


PROBLEM SYMPTOMS TABLE

Symptom

Suspected Area
Mirror does not operate
  1. CIG fuse (I/P J/B)
  2.  Mirror switch
  3.  Mirror motor
  4.  Wire harness
Mirror operates abnormally.
  1. Mirror switch
  2.  Mirror motor
  3.  Wire harness
Power mirror control system
...

Inspection
1. INSPECT OUTER MIRROR SWITCH ASSY (a) Inspect the mirror switch continuity.  Turn to the left/right adjustment switch to the L position. Inspect the left side mirror switch continuit ...

More about Toyota Highlander:

On-vehicle inspection
1. CONNECT HAND-HELD TESTER: (a) Connect the hand-held tester to the DLC3. (b) Start the engine and run at idle. (c) Select the ACTIVE TEST mode on the hand-held tester. HINT: Please refer to the hand-held tester operator's manual for further details. 2. INSPECT ACTUATOR MOTOR OPERATION ...
